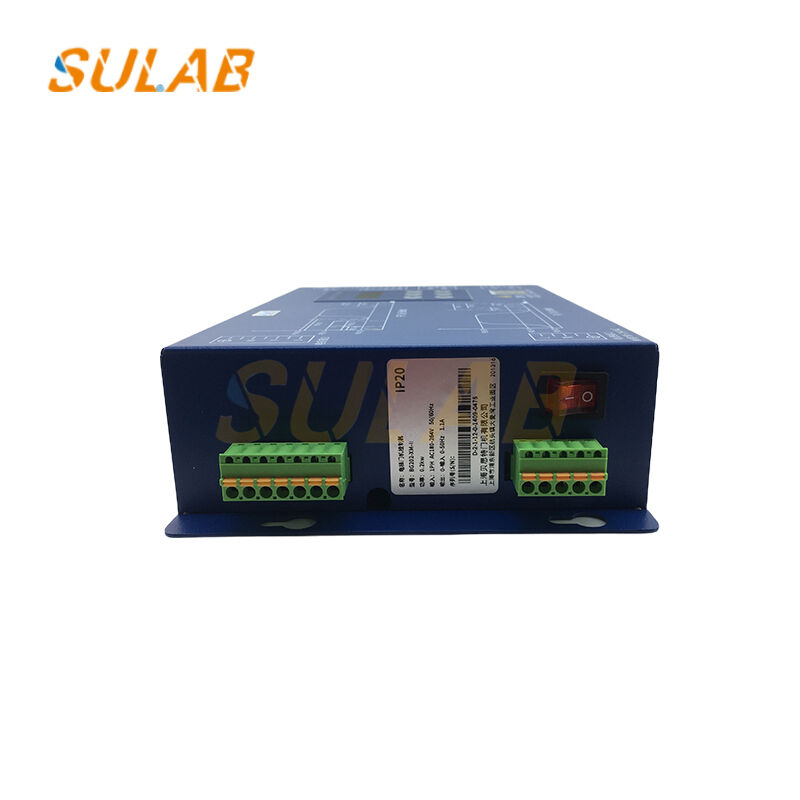

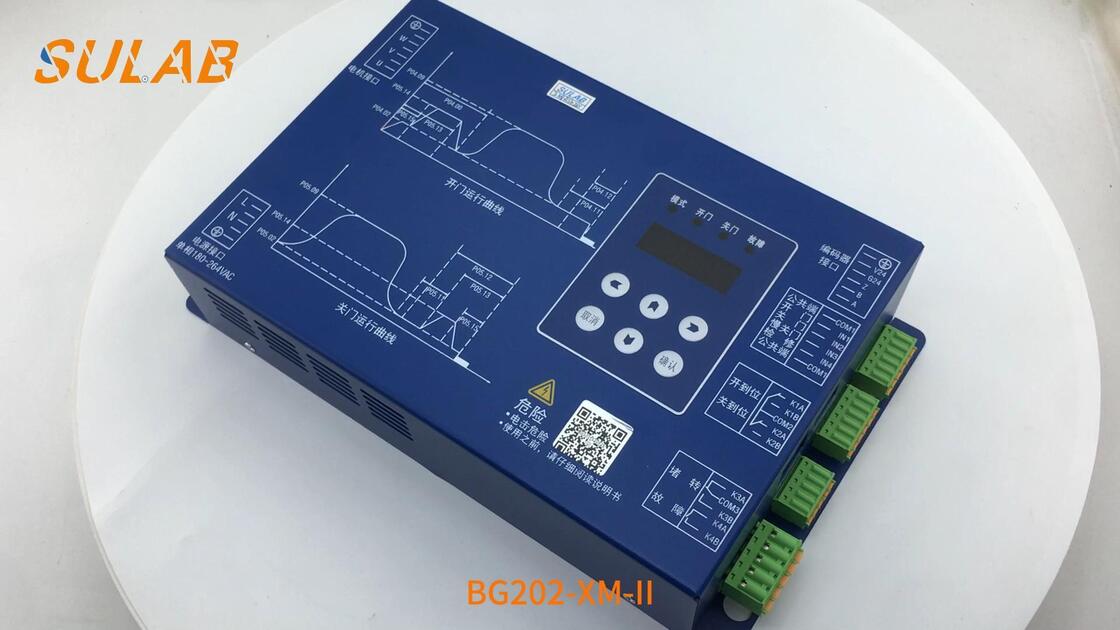

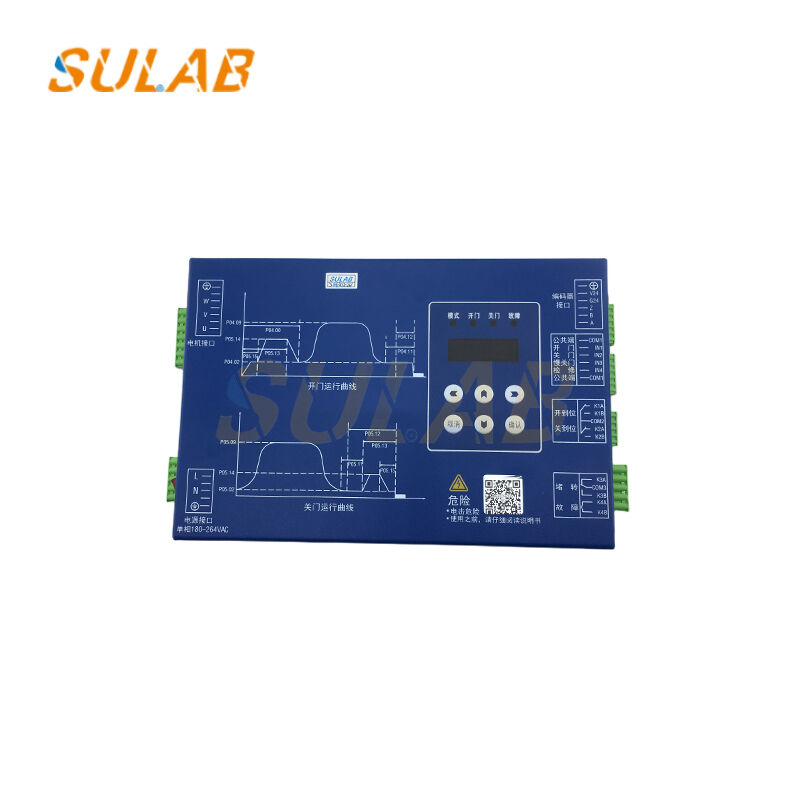

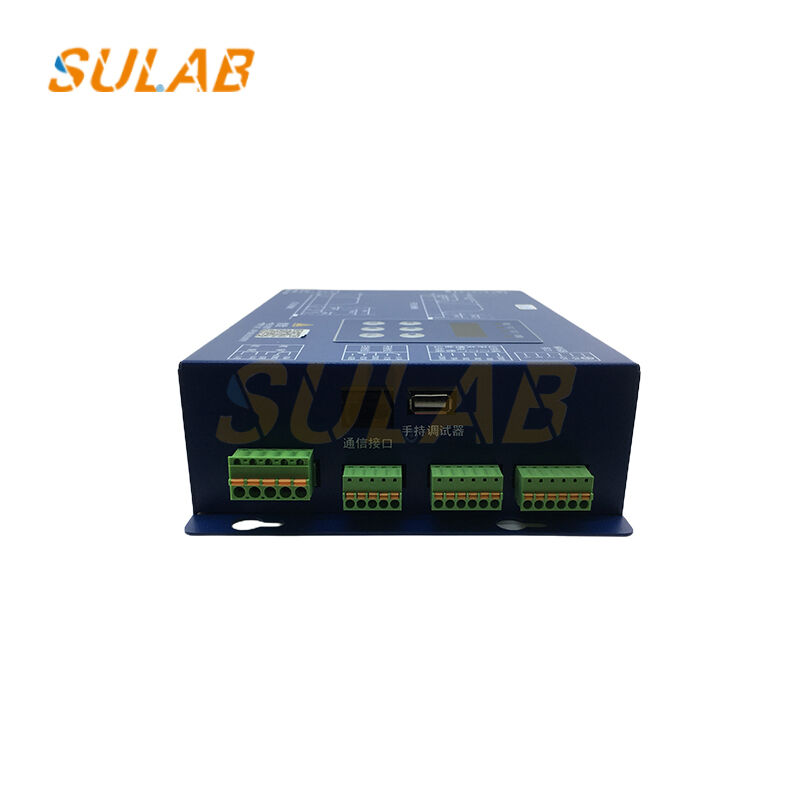

| Model | BG202-XM-II |
| Merk / OEM | SIGMA (LG-Sigma) |
| Functie | VVVF-aandrijving en positiebeheersing met deurmotor |
| Geschikte motoren | PMSM of asynchrone 3-fasen (≤ 0,75 kW) |
| Stroomvoorziening | 1-fase 220 VAC ±10 %, 50/60 Hz |
| Output | 3-fase 0-220 V, 0-400 Hz |
| Nominale stroom | 2.5 A |
| Besturingsmodus | SVC (sensorloze vector), encoder optioneel |
| De snelheid van de deur | 0.1 - 1,0 m/s (veldprogrammabel) |
| Openingsbreedte | 700 - 2400 mm |
| Bescherming | IP 20, overstroom, overspanning, onderspanning, kortsluiting, thermische |
| Ingebouwde functies | Zelflerend, automatisch heropenen, obstakelheropenen, brand-noodinvoer |
| Display / toetsenbord | 3-cijferige LED + 5 tasttoetsen |
| Communicatie | RS485 (Modbus-RTU) |
| Werktemperatuur | -10 °C ~ +50 °C |
| Vochtigheid | ≤ 90% RH (niet-condenserend) |
| Afmetingen | 260 × 154 × 55 mm |
| Montage | Schroeven met achterplaat, 4 × M4 |
| Gewicht | 1.1 kg |
